6m Standard Length Wire Wrapped Continuous Slot Johson Water and Oil Well Screens with Q235 Mild Steel Material

Name: 6m Standard Length Wire Wrapped Continuous Slot Johson Water and Oil Well Screens with Q235 Mild Steel Material
Brand: XinLu
Price: 50 USD

Wholesale 6m Standard Length Wire Wrapped Continuous Slot Johson Water and Oil Well Screens with Q235 Mild Steel Material from china suppliers

Brand Name : XinLu

Place of Origin : Anping County Xinlu Wire Mesh Produts Co.,Ltd

Certification : CO, FORM E, FORM F, SGS

MOQ : 10pcs

Price : 50-400$ according to the specification

Packaging Details : inside transparent plastic bag, outside woven bag, or bubble bag, or wooden box, or pallet

Delivery Time : 5-20days according to the order quantity

Payment Terms : T/T, cash, or others

Supply Ability : 300pcs/month

Model Number : XL-DN114-125-154-168-219-273-323-426

End connection : Threaded Ends: API STC, BSP, NPT, BSPP, G"; Plain End: Welded Rings; Flange

Slot size : 0.05mm-10.0mm

Roundness : Pure Round And Angular

Support rods : 2.5-6mm

Mild Steel Material : Q235, Q195

Wedge Wire : 0.75x1.8mm, 1x2mm, 1.5x2mm, 1.5x2.5mm, 2x3mm, 2.2x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3x6.2mm, 4x7mm, Etc

Diameter : 1", 2", 3", 4-1/2", 5", 6-5/8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", 14", 16", ..., 20”, Etc

Support wire : 1x2mm, 1.5x2.5mm, 2x3mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3x6mm, 4x7mm, Etc

Contact Now

6m Standard Length Wire Wrapped Continuous Slot Johson Water and Oil Well Screens with Q235 Mild Steel Material

Product Description:

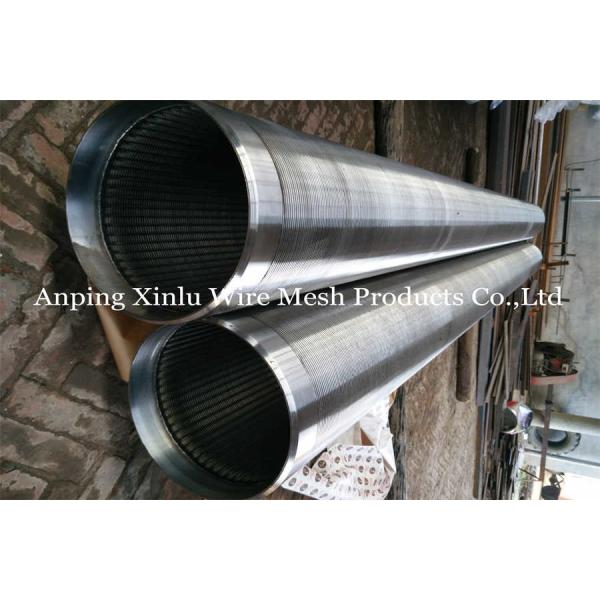

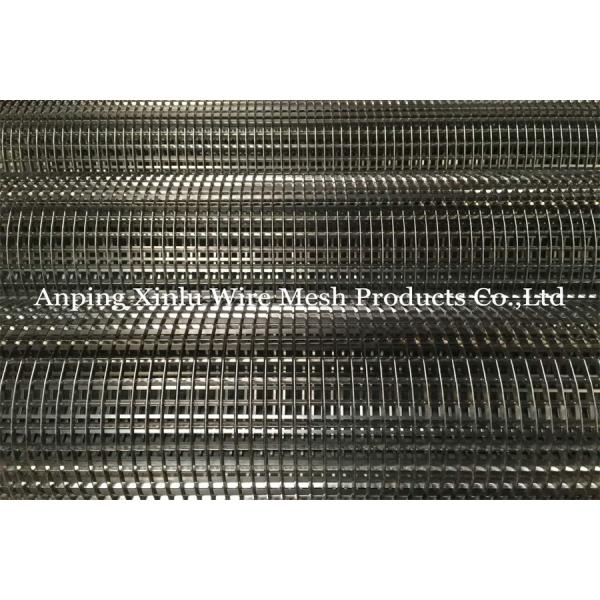

Experience the strength and precision of our Wire Wrapped Screens, meticulously crafted for water and oil well applications. These screens are constructed by wrapping wedge wire around a circular or V-shape array of spacing rods, ensuring exceptional durability and filtration accuracy. Our Wire Wrapped Screens are available in standard lengths of 6 meters, with a variety of diameter and wedge wire size options to suit your specific needs.

Features:

Product Name: Wire Wrapped Screens
Standard Lengths: 3m and 6m (actual lengths 2.9–2.95m and 5.8–5.95m to fit containers)
Support Wire: 1x2mm to 4x7mm and more
Material: Q235 Mild Steel, with options for Duplex Stainless Steel 2205, 904L
Diameter Range: 1" to 20"
Applications: Filtration, separation, water treatment, oil and water well drilling, seawater treatment, and more
Wedge Wire Wrapped Screen Plate
Wire Wrapped Water Well Screen
Wire Wrapped Nozzle Screen
Wire Wrapped Underground Water Well Screen
Wire Wrapped Gravel Prepacked Screen

Technical Parameters:

Parameter	Description
Standard length	3m, 6m (actully 2.9-2.95m, 5.8-5.95m To Fit Container)
Diameter	1", 2", 3", 4-1/2", 5", 6-5/8", 8-5/8", 9-5/8", 10-3/4", 12-3/4", 14", 16", ..., 20”, Etc
Roundness	Pure Round And Angular
Mild Steel Material	Q235, Q195
Surface Treatment	Electrolytic Polishing, Pickling, Galvanizing, No Burrs, Smooth, Brightetc.
Duplex stainless steel	2205,904L
Support rods	2.5-6mm
Length range	0.5-6m (10ft, 20ft)
Slot size	0.05mm-10.0mm
End connection	Threaded Ends: API STC, BSP, NPT, BSPP, G"; Plain End: Welded Rings; Flange

Applications:

Our XinLu wire wrapped screens are the perfect solution for a multitude of filtration and separation needs. With their high strength, precision, and corrosion resistance, these screens are ideal for use in water treatment, oil and gas, chemical, food and beverage industries.

Customization:

At Anping County Xinlu Wire Mesh Products Co., Ltd, we offer customized wire wrapped screens to fit your exact specifications. With a minimum order quantity of 10pcs and competitive pricing, we ensure that your needs are met with precision and quality.

Keywords

Stainless Steel Wire Wrapped Screen, Wire Wrapped Sand Screen, Wire Wrapped Screen Plate, Wire Wrapped Pipe Screen

Technical Specifications:

Specification	Details
Material	Mild Steel (Q235, Q195), Duplex Stainless Steel (2205, 904L)
Standard Length	3m and 6m (actual 2.9-2.95m and 5.8-5.95m)
Support Wire	Various sizes up to 4x7mm
Support Rods	2.5-6mm
Roundness	Pure Round and Angular
Wedge Wire Sizes	0.75x1.8mm to 4x7mm

Support and Services:

Our team is dedicated to providing you with the highest level of customer service and technical support. We offer advice and assistance on the installation and operation of our products and are always available to answer any queries you may have.

Packing and Shipping:

Our wire wrapped screens are carefully packed in strong wooden crates or cases, wrapped in protective plastic sheets, and secured with metal straps for safe transit. We ensure that every package is well-protected against weather or debris during shipping.

FAQ:

Q1: What is a Wire Wrapped Screen?
A1: It's a well screen made of stainless steel, carbon steel, or other alloy steel wires, used in various well applications.

Q2: What brand are these screens?
A2: Produced by Anping County Xinlu Wire Mesh Products Co., Ltd under the brand XinLu.

Q3: What certifications do these screens have?
A3: CO, FORM E, FORM F, SGS certifications.

Q4: What is the minimum order quantity?
A4: 10pcs.

Q5: What is the price range?
A5: $50 to $400 according to specifications.

About Anping County Xinlu Wire Mesh Products Co., Ltd:

As a leading manufacturer of wire mesh products, we are committed to delivering innovative and high-quality filtration solutions. Our focus on customer satisfaction and product excellence ensures that you receive the best products and services in the industry.
